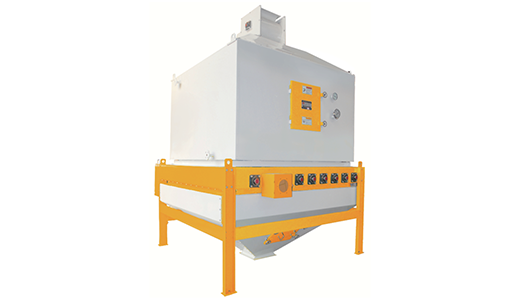

Flip type jacket stabilizer
Flip type jacket stabilizer
Flip type jacket stabilizer

·ABB motor, SKF bearing;

·It is suitable for post-curing operation of aquatic products and can effectively kill African swine fever  virus in the production of pig feed. Under the heating and heat preservation of direct steam and indirect  steam, the temperature of the feed can be kept between 85°C and 105°C. The time is more than 20  minutes, so that the stable time of fish and shrimp pellet feed in water can reach 2-5 hours;

·The box body adopts a jacket structure, the outer side is insulated by rock wool, and the curing  effect is good; during operation, steam is passed into the jacket for heating and heat preservation,  and steam can also be injected into the pellet feed through the annular steam supply pipe at the  top. In order to increase the temperature, the jacket and pipeline system are equipped with safety  valves, which are safe and reliable;

·The flexible hydraulic swing flap discharge mechanism and the special triangular flap structure  make the discharge resistance small and the action soft, so as not to damage the feed, and the  discharge is smooth without accumulation, and no manual cleaning is required;

·The parts in contact with the material are made of stainless steel, which has a longer service life.
