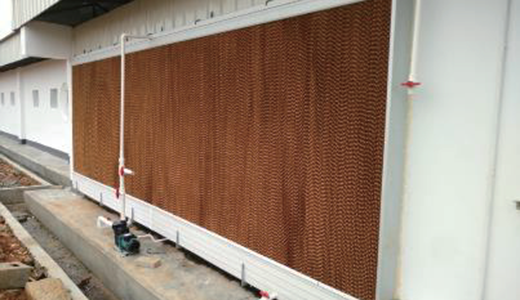

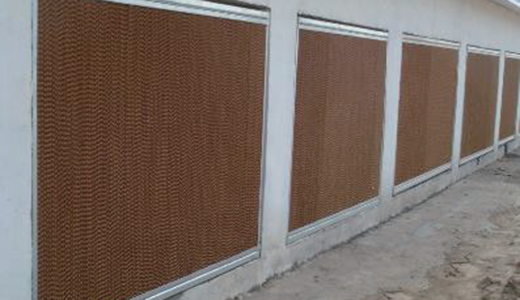

·The cooling pad system consists of an all-aluminum alloy and PVC cooling pad frame solution;

·The special hydrophobic curtain can keep the water evenly wet the whole cooling wet curtain paper, so as to ensure that the surface of the wet curtain in contact with the air is wet;

·Model of water curtain paper: 7060 and 7090 . 7060 paper is adopted by default, and the dry weight is about 40kg / m³， The wet weight is about 100kg / m³;

·Specification of water curtain paper: 1500mmx600mmx150mm, 1800mmx600mmx150mm,

2000mmx600mmx150mm; Special specifications can be customized. The maximum size of a single piece is 2200mmx600mmx150mm. Super high water curtain scheme can be designed, such as 3M high.
